Week 4 February 13th & 15th

WebDesign and Publishing (PPT)

To do this week

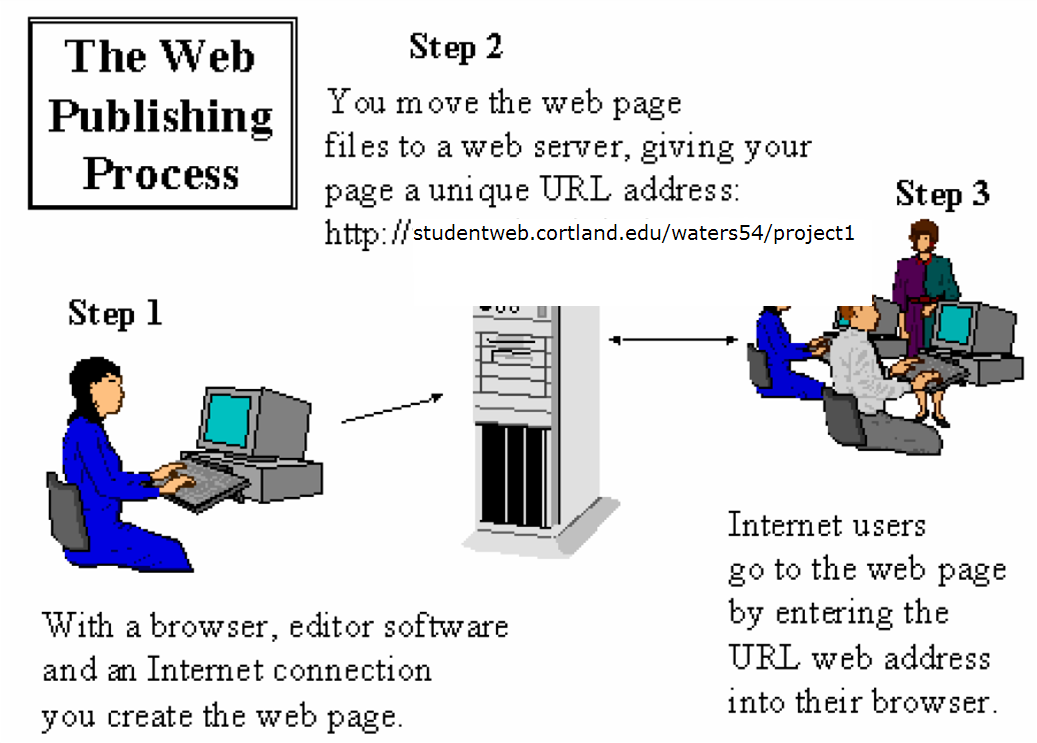

Basics of Web Design: from Web authoring to Publishing- the Whole Process

Step 1. Create a web page using Web Authoring Tool Nvu

1) Make a folder on a local drive

Make a folder on a local drive (desktop or your flash drive) and name it: "314". You'll put all your ePortfoilo files in this folder, including images (.gif and .jpg).

I cannot emphasize enough how important it is to place all your files (html documents, images etc) in that single folder. Later, you can do things differently, but as a novice, you will avoid many frustrating broken links if you have all your documents in a single folder.

2) Open NVU and get familiar with it.

Web Design Using Nvu

Nvu homepage

Nvu FAQs

Learn how to build your website using Nvu

Nvu Tutorial #1 : Nvu Video Tutorials by http://www.designyourownweb.com/nuv-tutorial.htm

Nvu Tutorial #2 : EccentricGnat.com >> NVU Tutorials



3) Create a file and name it "index.html" that will serve as your homepage

Create one nice looking page to serve as your "homepage." Save your page to your thumb drive and name it "index.html"
[This is important: "index.htm" is the standard or default filename for the first page in your web folder. Don't save it under any other name... such as "myindex.html" or "index.html".]

4) Check out how your page looks in a browser by opening it in NVU or Internet. Explorer to see how it will look when you publish it.

5) At this point, you have your homepage on your hard drive. The next step is to publish it to your Web folder at Cortland. You need to understand FTP ("File Transfer Protocol")

Step 2. Upload your file to your web folder on Cortland Student Web Server

To publish your web pages, you need to understand how Cortland provides you with your web folder in your web space. Here are the step-by-step instructions.

6) Create a web folder

• Go to http://studentweb.cortland.edu and click the "Create a Web Account" link (for students).
• Click "Create My Web Account"
• Enter your Cortland NetID and password, then click OK
• Read the Terms of Service and press Continue
• Make sure you see a confirmation screen stating "Web Folder Created Successfully"
• Note down your web address (URL) given on the screen

For technical problems related to web server that could not be solved after working with the instructor, you need to contact Technology Help Center through phone (607) 753-2500 or (607) 753-5599 or email at helpdesk@cortland.edu or go to Technology Help Center at Winchell Hall in person.

7) Publish the page - put pages in your Cortland Server web folder

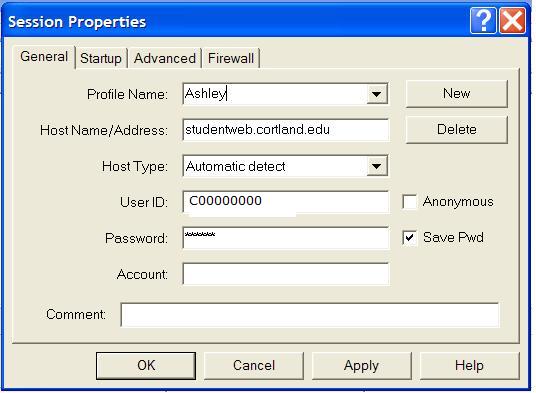

7.1 Open WS FTP and you will see a pop-up window

Profile Name: Any (you can use your first name but it can be any name as long as you could recognize that it was created by you.)

Host/Address: studentweb.cortland.edu

Host Type: Automatic Detect (by default, or choose this from the drop down menu)

User ID: Login with your current Cortland NetID. For example, if you NetID is C00000000, you would use
C00000000.

Password: Use your NetID/email password (uncheck Anonymous; you can check Save Pwd, but do NOT forget to log off the computer when you leave the lab.

Leave the other rows blank and click OK, your should connect to your website

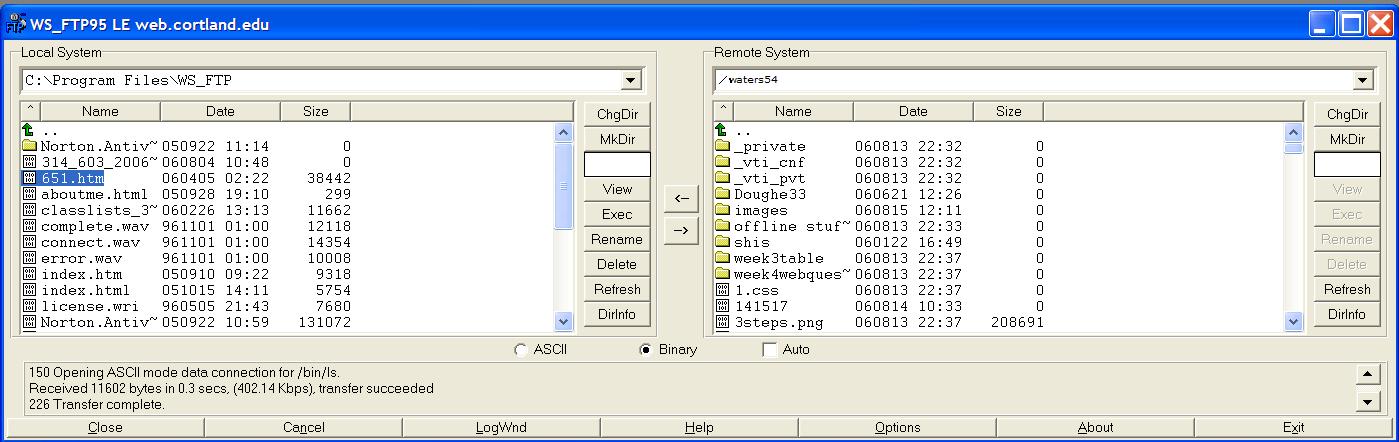

7.2 Transfer the webpage you just created that is named "index.html" to the Cortland web server

Locate your index.htm from your local drive (your flash drive in this case) in the left-handside window. Use the arrow to upload your index.htm file to your Cortland web server.

Step 3. Access your Pages: How to find your URL

8) Access your pages

To access your web page, you need to know the web address, which is also called URL (Uniform Resource Locator). Your URL to access your web pages is http://studentweb.cortland.edu/ followed by the part of your email address before @ (though it is not always the case). For example, if your email is waters54 and your first web page is top.html, then the URL is http://studentweb.cortland.edu/waters54/top.html. So here is the formula:

URL: http://studentweb.cortland.edu/username/filename.htm

http:// tells the Web-browser to use the hyper-text-transfer-protocol.

studentweb.cortland.edu tells the browser to go to the Cortland web-server computer.

username (waters54) tells the browser to go to your account on the Cortland web-server computer. This is the part of your email before @. Suppose your email is waters54@cortland.edu, your account should be waters54

filename.htm tells the browser to go to that file on your account.

9) About the special file "index.html" (your default homepage)

A page named index.html is automatically created when you create your folder and is the page that opens by default when you access your URL without specifying a page. index.html is a special file and it is your homepage “by default”, that is, you can omit the file name "index.htm" and the URL of your homepage is: http://studentweb.cortland.edu/waters54/

Note: It is crucial that your main page for your website be named "index.html" If you do not have an index.html in your Cortland Web folder, your website WILL NOT WORK.

Here is the URL for different kinds of files in your webfolder: http://web.cortland.edu/username/filename

filename is the name you give to a file with the right extension. It can be any kind of file:
.html web page
.doc word file
.ppt PowerPoint
.jpg or .jpeg image
.pdf

File names: avoid pitfalls When naming a file, avoid using space, capital letter or other special letters. Thumb of rule: use small letter, no space, but still easy to recognize what the content is.

10) Practice creating another page named "practice.html" and publish it.

Project #1 due date was extended to Thursday, Feb. 22.

Hope this is not your feeling today... very likely it might very well be ;-)
